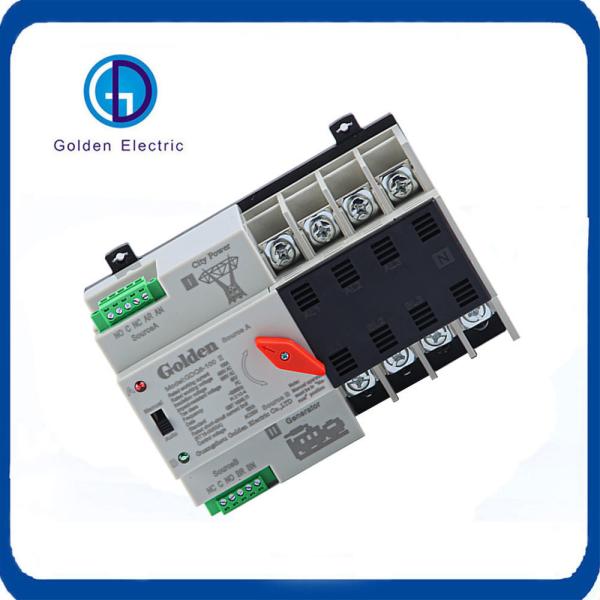

GDQ6 series dual power automatic transfer switch is new developed micro household power transfer switch.. The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.
GDQ6 series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.
ATSE is composed of TSE and the controller. ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified by GB/T14048. 11, Part 6-1 : Multiple functional equipment and transfer switch equipment.
Series of automatic transfer switches(ATS) are suitable for emergency power systems 4 00V,60A with AC rated current of 50 or 60Hz, compact structure, reliable conversion, easy installation, and maintenance long life. It is widely used on various occasions where continuous power failure is not allowed. It can be operated electrically or manually by ATS, and the controller. Series dual power automatic transfer switches(ATS) are newly developed miniature household power transfer switches. This switch is mainly used to test whether the normal or standby power supply is normal. When the normal power supply is abnormal, the backup power supply will work immediately to ensure the continuity, reliability, and safety of the power supply. This product is specially designed for home track TV installation and is specially used for the Pz30 distribution box.
Complies with requirements of Low -voltage Switch Gear and Control Gear specified by IEC 6 0947-6-1and IEC 60947-3: functional equipment and transfer switch equipment.
1.(Must be connected) Take zero line and fire line from the common control incoming line to connect AR (live wire) /AN (Netural line)
2.(Must be connected)Take zero line and fire line from the backup control incoming line to connect BR (live wire) /BN (Netural line)
3.The power indication signal is passive output, and the generator signal is taken (common) and (normally closed)
4.Connect the load end at the lower end of the (standby power supply side),Stepped wiring
5.There is an isolation board on the load. When wiring, first remove the isolation board connect the load and then install the isolation board ( it is recommended to connect the load first,then connect the backup power supply)
Note: Normal type wiring same as solar type. For solar type, the backup powe must be connected to the city power.
| Rated current le A | 16 20 25 32 40 50 63 | 100 |
| Insulation voltage Ui | AC690V |
| Rated voltage Ue | AC400V |
| Grade | Grade PC: able to male and withstand, not to break short-circuit current |
| Use category | AC-33iB |
| Pole | 2P | 3P | 4P |
| Weight(kg) | 0.62 | 0.72 | 0.81 |
| Life | Electrial:2000times;Mechanical:5000times |
| Rated conditional short-circuit current lq | 50kA |
| SCPD(fuse) | RT16-00-63A |
Rated impulse
withstand voltage | 8kV |
| Control circuit | Rated control voltage Us: AC220V,
50Hz Correct working condition85%Us~110%Us |
| Auxiliary circuit | AC220V/AC110V 50/60Hz |
| Contact transfer time | <50ms |
| Operating transfer time | <50ms |
| Return transfer time | <50ms |
| Off-time | <50ms |
| Temperature range | -5ºC~+40ºC
average temperature not more than 35ºC in 24 hours |
