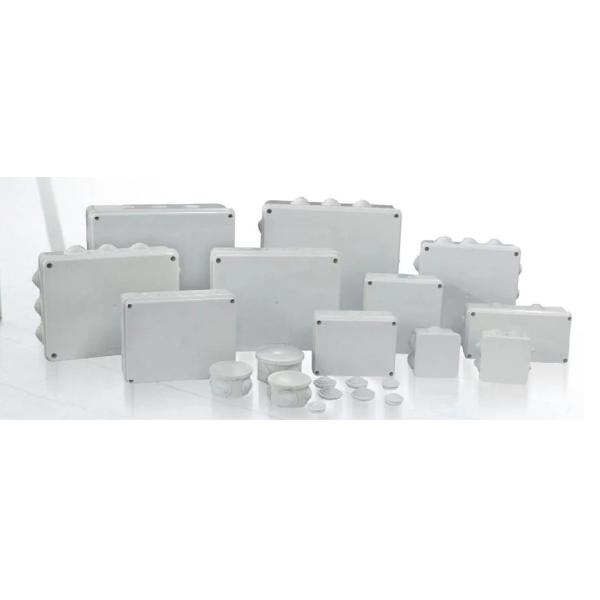

RA waterproof IP65 outdoor plastic box enclosure electronic / junction box
Body material: ABS
Stopper material: PVC
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway,building, mine, air and sea port, hotel, ship, works, waste water treatment equitment, environmental equipment and so on.
Installation: 1. Inside: There are the installation holes in the base for circuit board or din rail.
2. Outside:The products can be directly fixed on the wall or other flat boards with
screws or nails via the screw holes in the base.
Outlet hole: Cutting a hole in the PVC stopper as related cable size or installing cable gland to get better waterproof performance.
| Item | L W H(mm) | Hole(QTY) | hole size(mm) | IP | GW(kg) | NW(kg) | QTY/CTN(pcs) | Carton Size(cm) |
|
| GD-RA | 50*50 | 4 | 25 | 55 | 13.5 | 12.3 | 300 | 46*38*51 |
| GD-RA | 80*50 | 4 | 25 | 55 | 14.7 | 13.4 | 240 | 53*35*62 |
| GD-RA | 85*85*50 | 7 | 25 | 55 | 17.2 | 16 | 200 | 53*41*53 |
| GD-RA | 100*100*70 | 7 | 25 | 65 | 14.9 | 13.5 | 100 | 62*49*35 |
| GD-RA | 150*110*70 | 10 | 25 | 65 | 15.1 | 13.8 | 60 | 67*33*46.5 |
| GD-RA | 150*150*70 | 8 | 25 | 65 | 16.3 | 15 | 60 | 84.5*34*45 |
| GD-RA | 200*100*70 | 8 | 25 | 65 | 16.6 | 15.3 | 60 | 61*46*42 |
| GD-RA | 200*155*80 | 10 | 36 | 65 | 14.5 | 13.2 | 40 | 69.5*43.5*42 |
| GD-RA | 200*200*80 | 12 | 36 | 65 | 18 | 16.6 | 40 | 90*46*40.5 |
| GD-RA | 255*200*80 | 12 | 36 | 65 | 21.9 | 20.1 | 40 | 55*45*78.5 |
| GD-RA | 255*200*120 | 12 | 36 | 65 | 21.9 | 20.1 | 30 | 64*55*62 |
| GD-RA | 300*250*120 | 12 | 36 | 65 | 20.3 | 18.4 | 20 | 61.5*55.5*63 |
| GD-RA | 400*350*120 | 16 | 36 | 65 | 15 | 13.3 | 10 | 74.5*42.5*61.5 |
Recommend Product
Packaging Details:
Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.
Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery Detail:
Shipped in 7 days after payment
